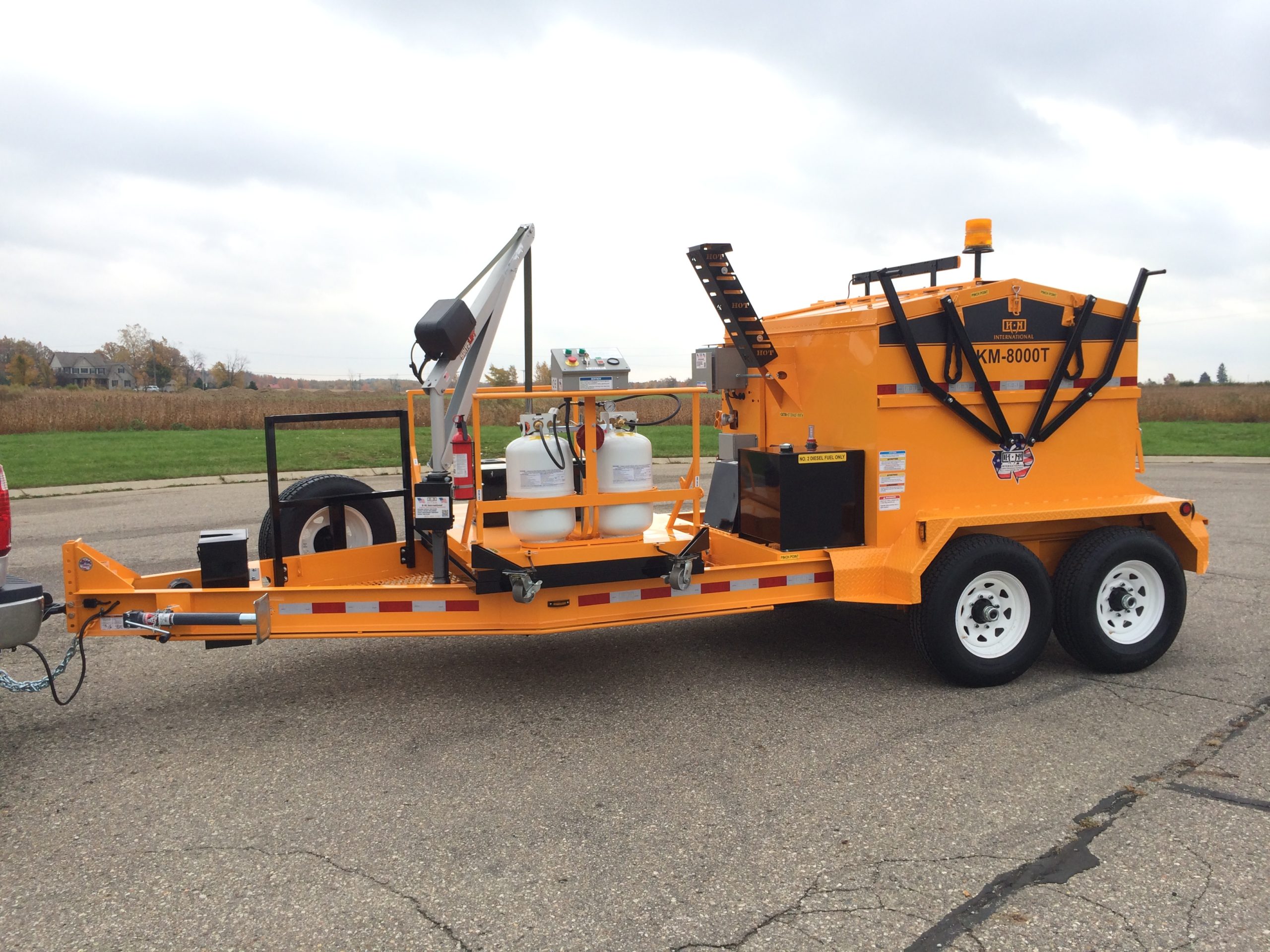

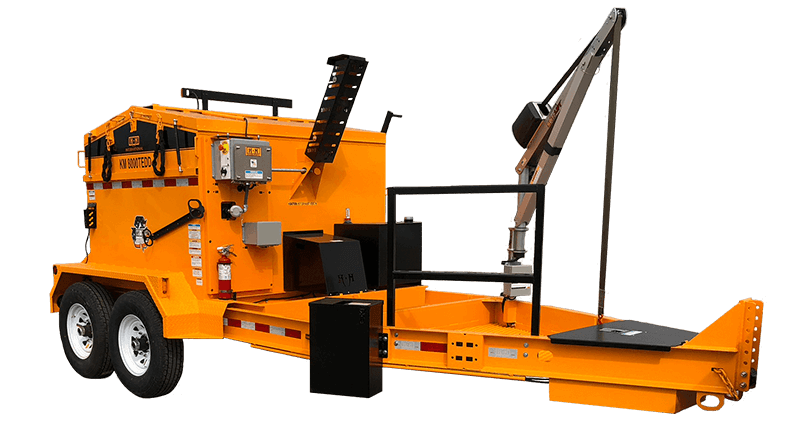

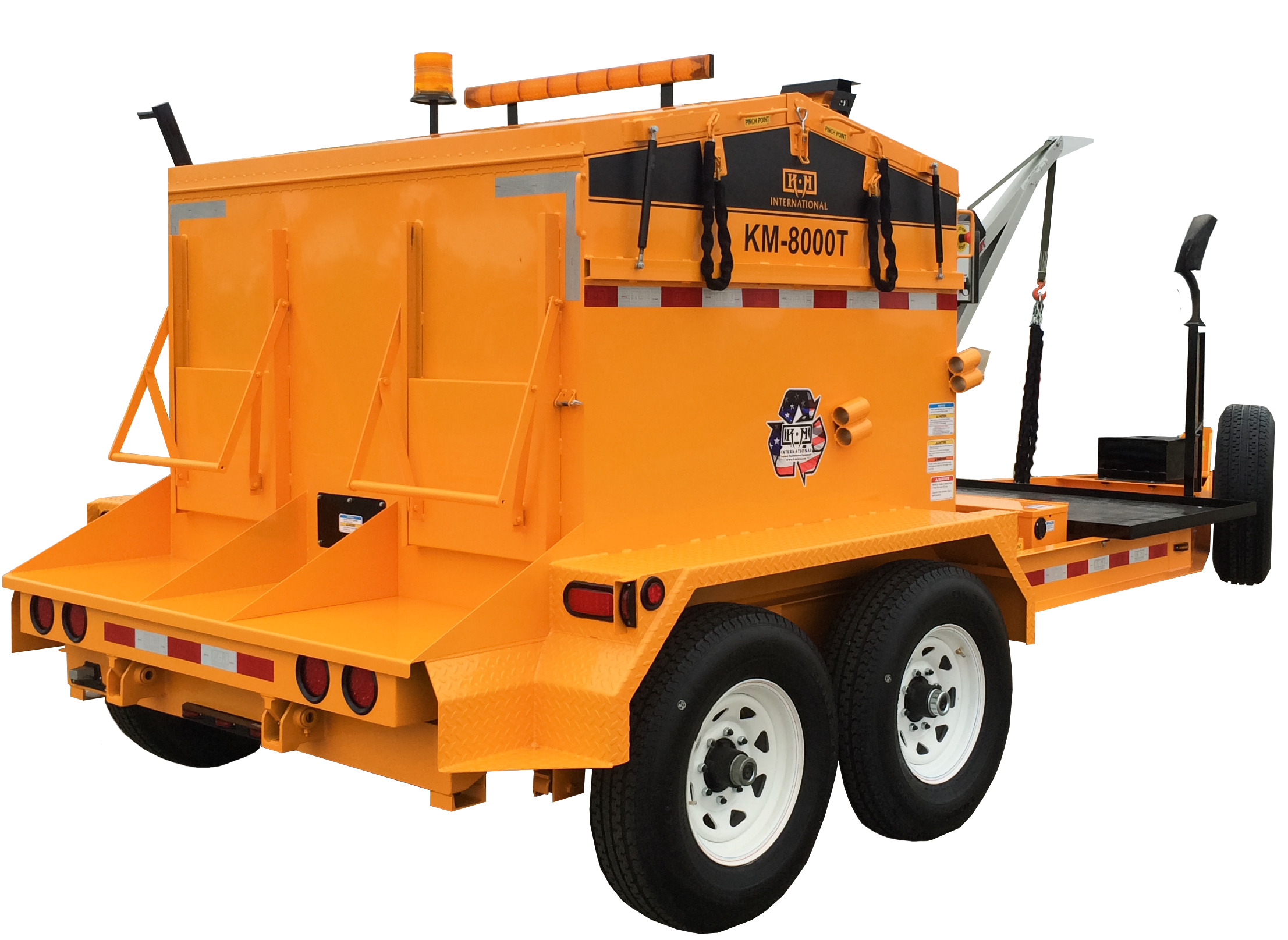

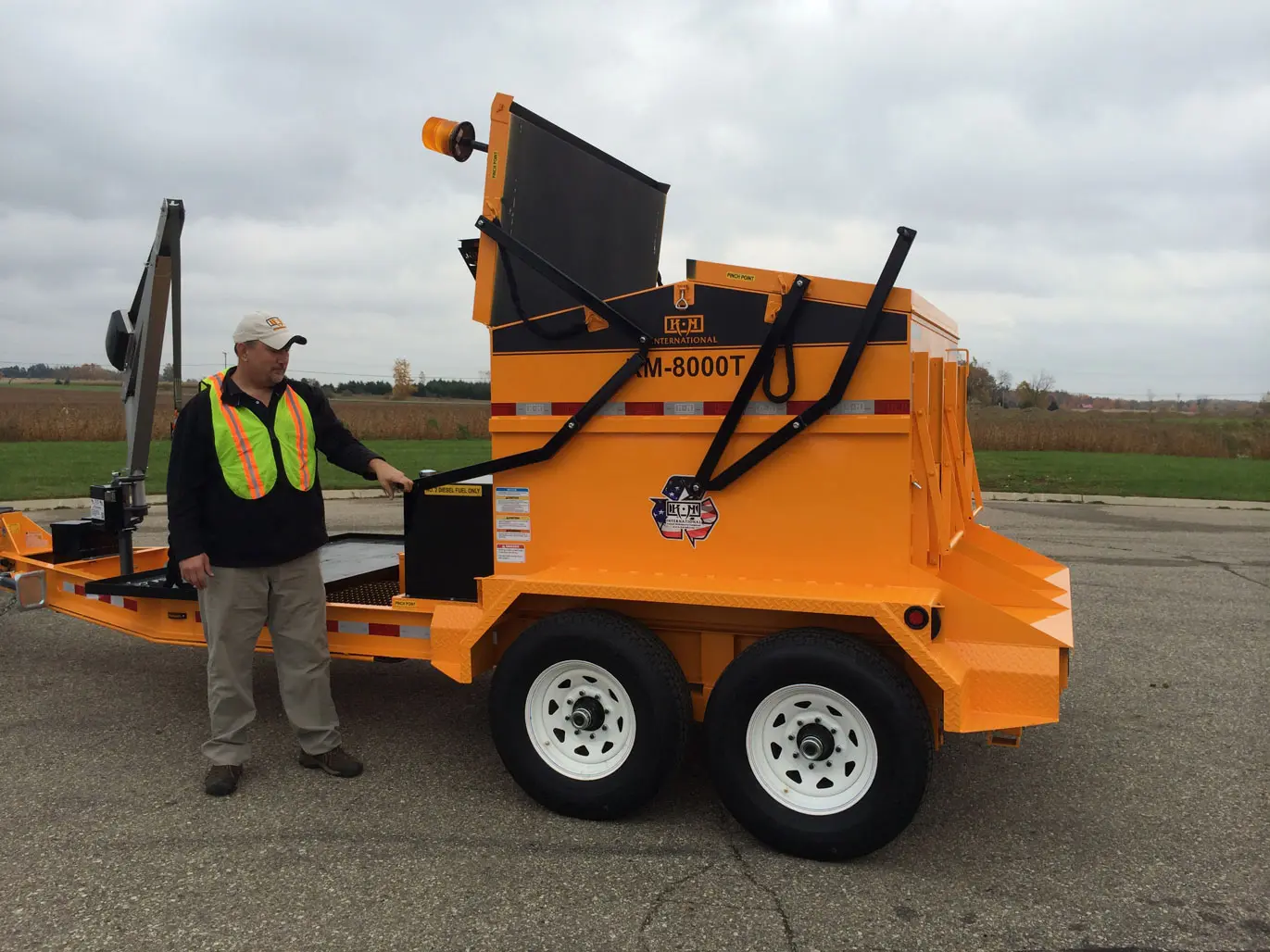

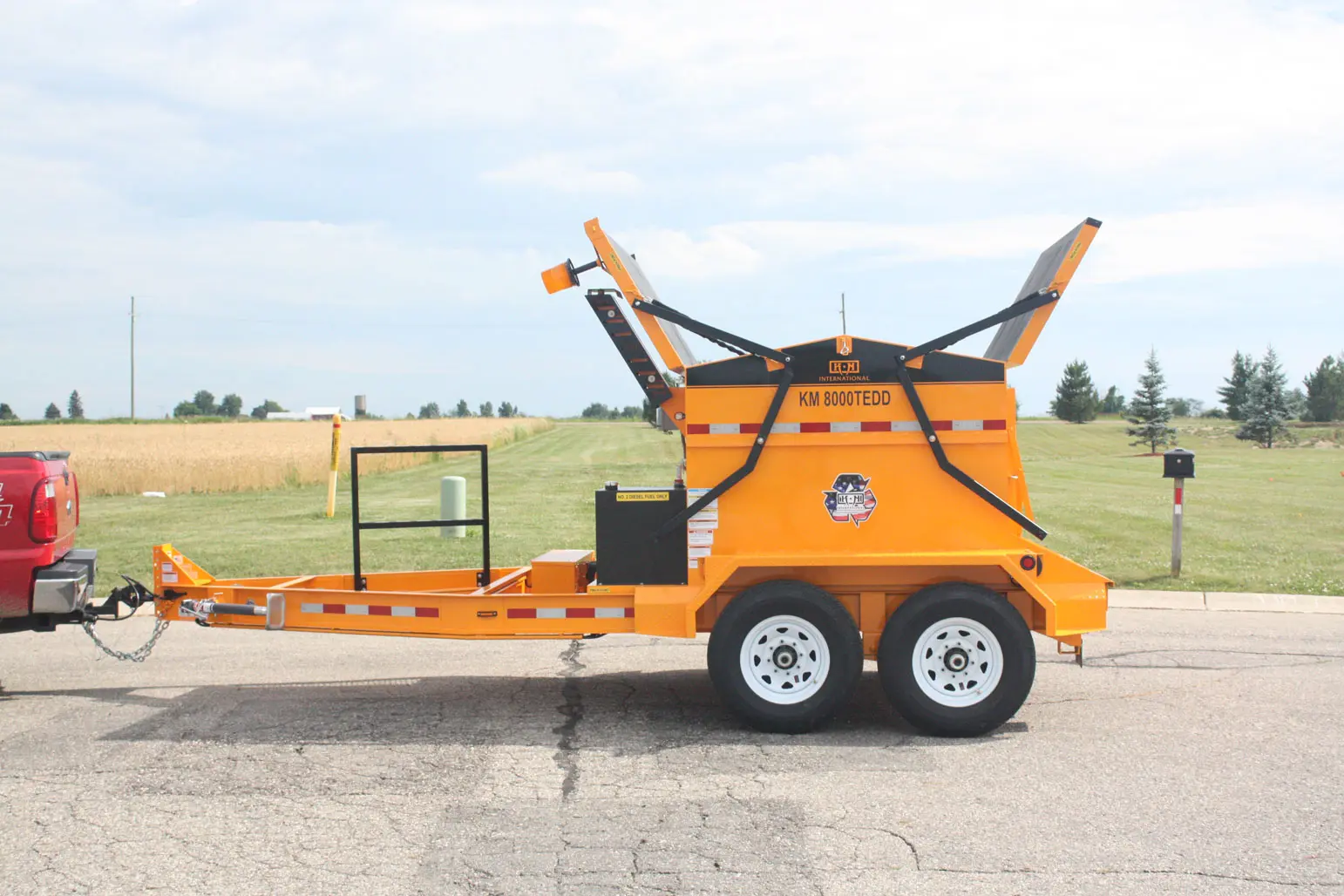

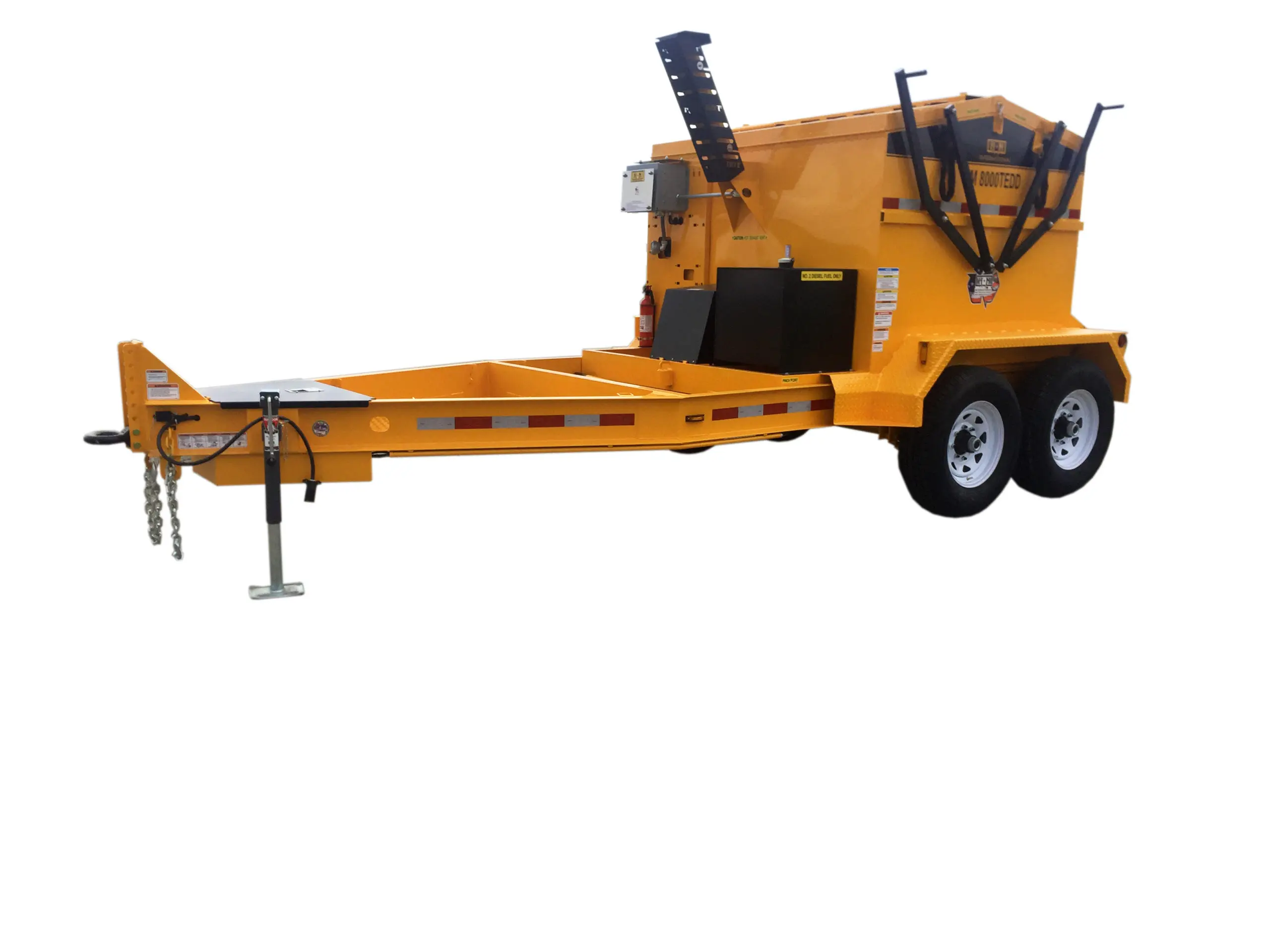

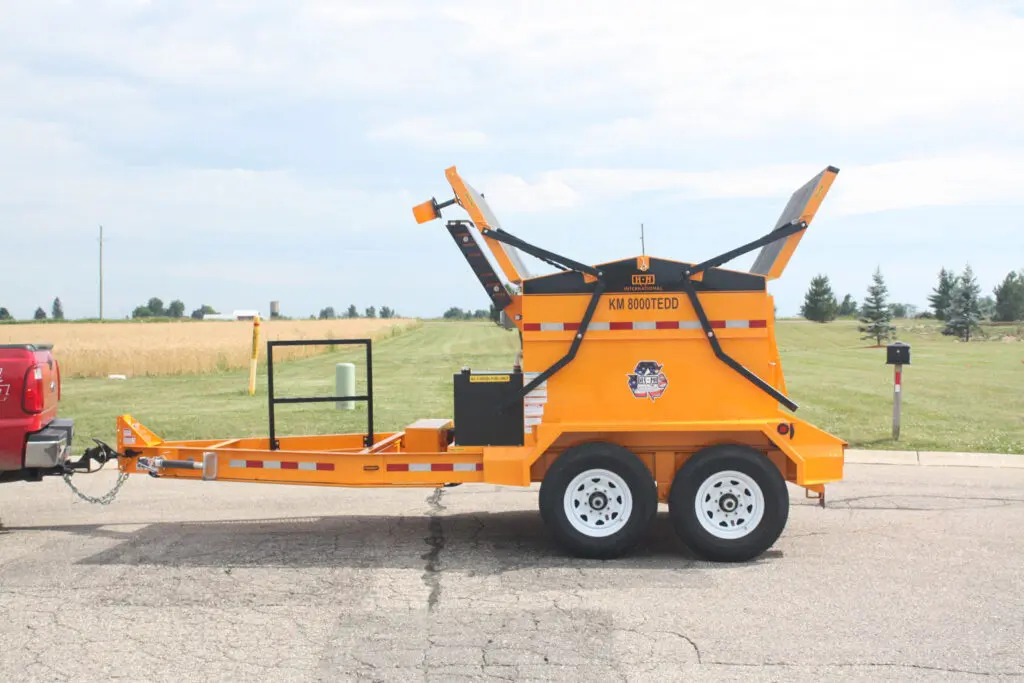

KM 8000T: 4 Ton Asphalt Hotbox Trailer
Our Equipment

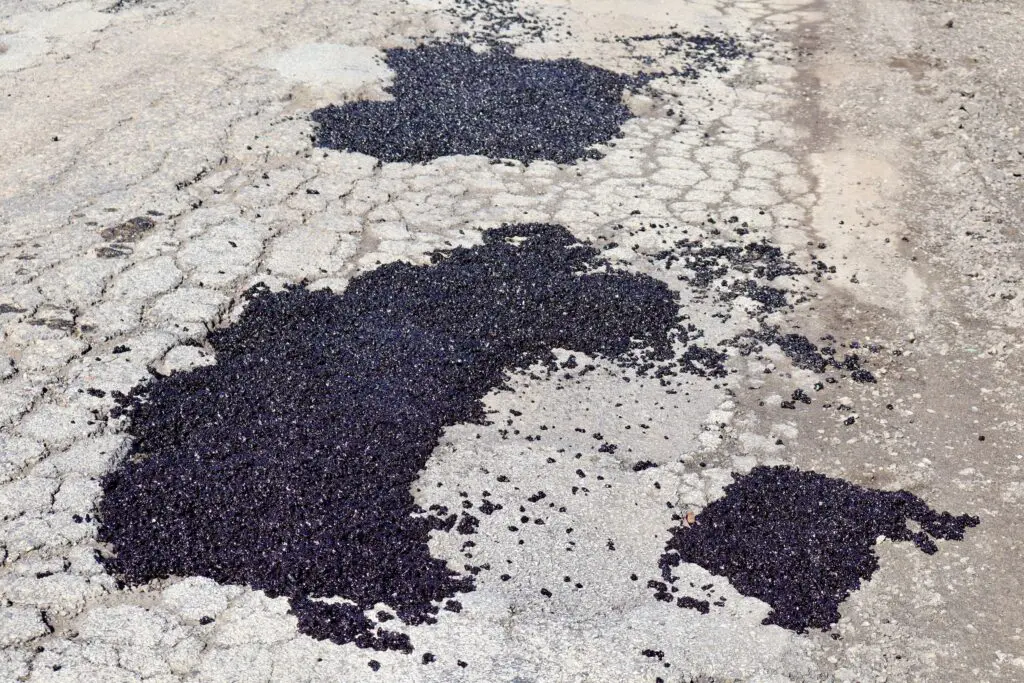

The KM 8000T 4 Ton asphalt hotbox trailer will maintain your hotmix asphalt or cold patch at optimal temperatures for up to 48 hours making it easy to transport material from jobsite to jobsite. The KM 8000T is also capable of reclaiming unused bulk stored or excess asphalt overnight so no more wasted asphalt because you got rained out or overestimated the material required. This unit is great for both municipal and contractor applications such as asphalt patching, infrared repair, and pothole repair.

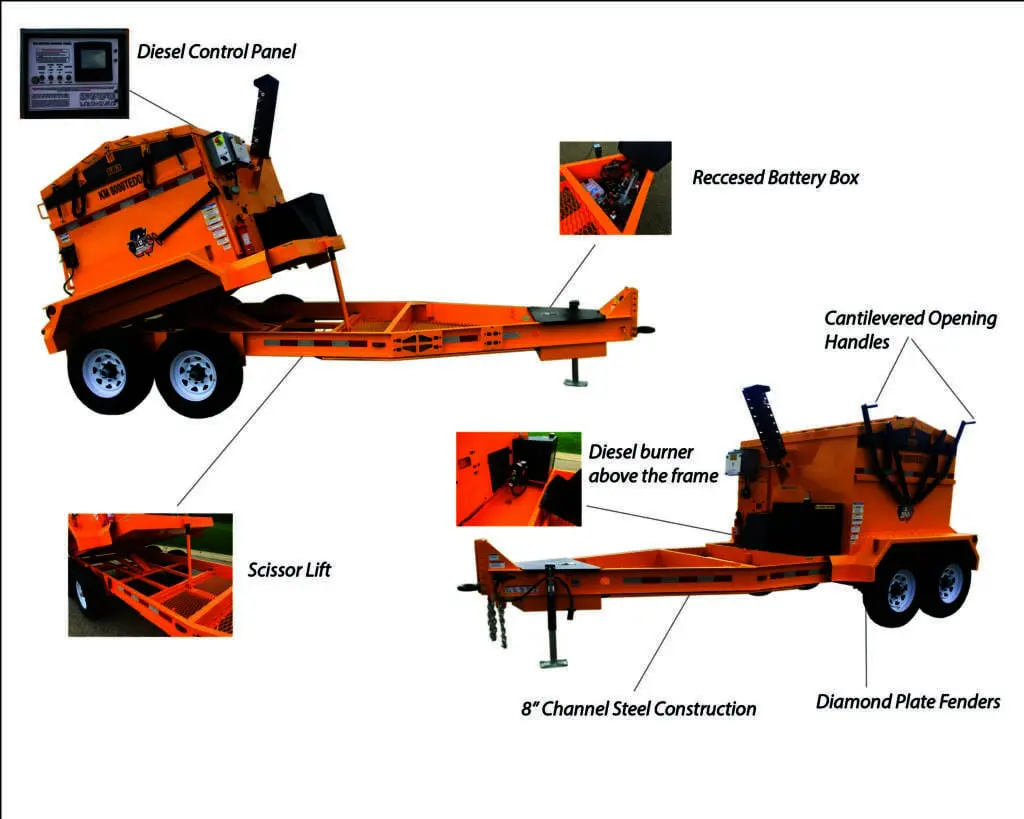

Heat Retention: Triple Wall Construction with high efficiency insulation

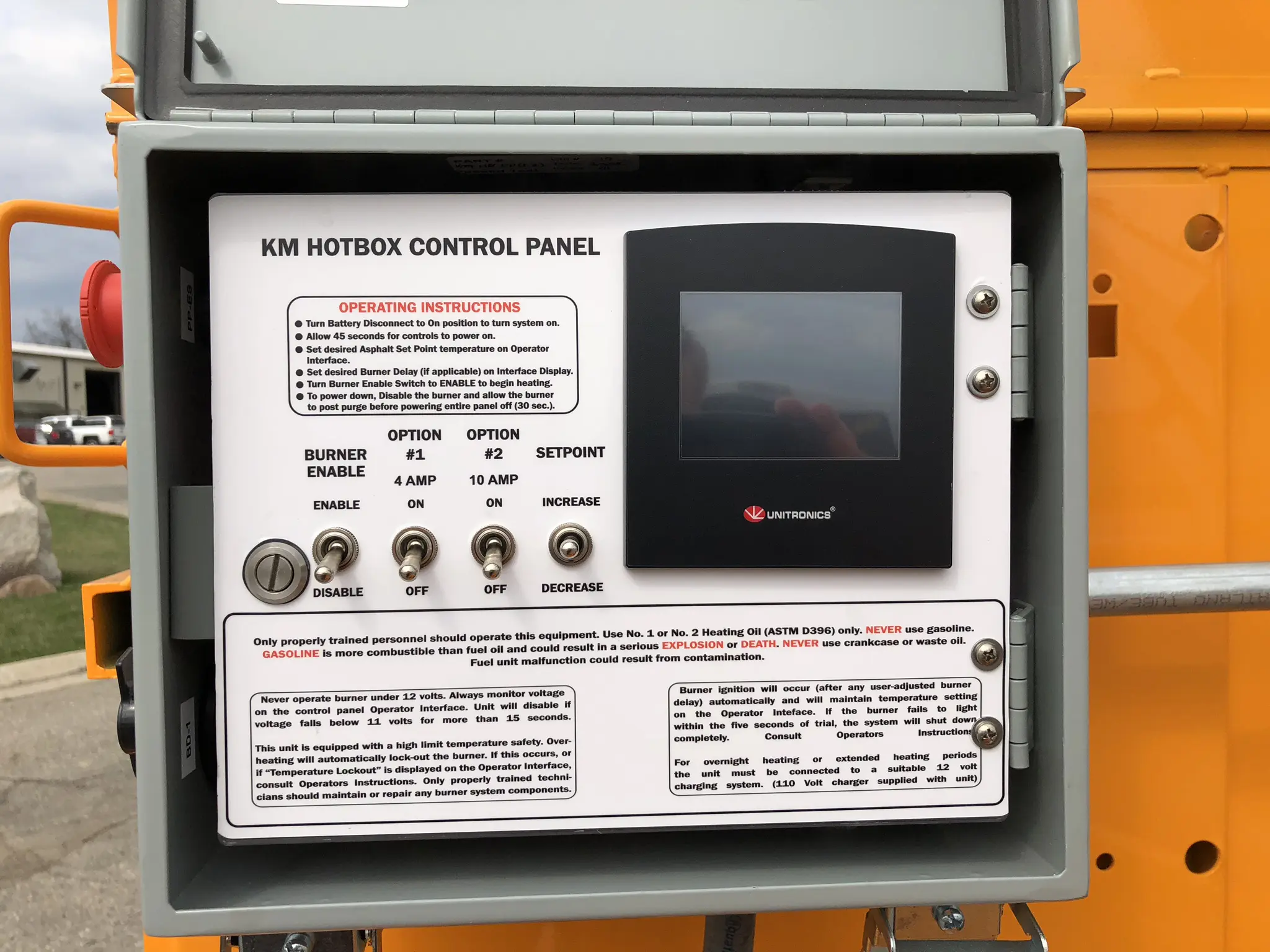

Temperature Control: Thermostatically controlled heating system for better fuel efficiency
Cost Savings: Maintain HMA for up to 48 hours or Reclaim bulk stored virgin HMA

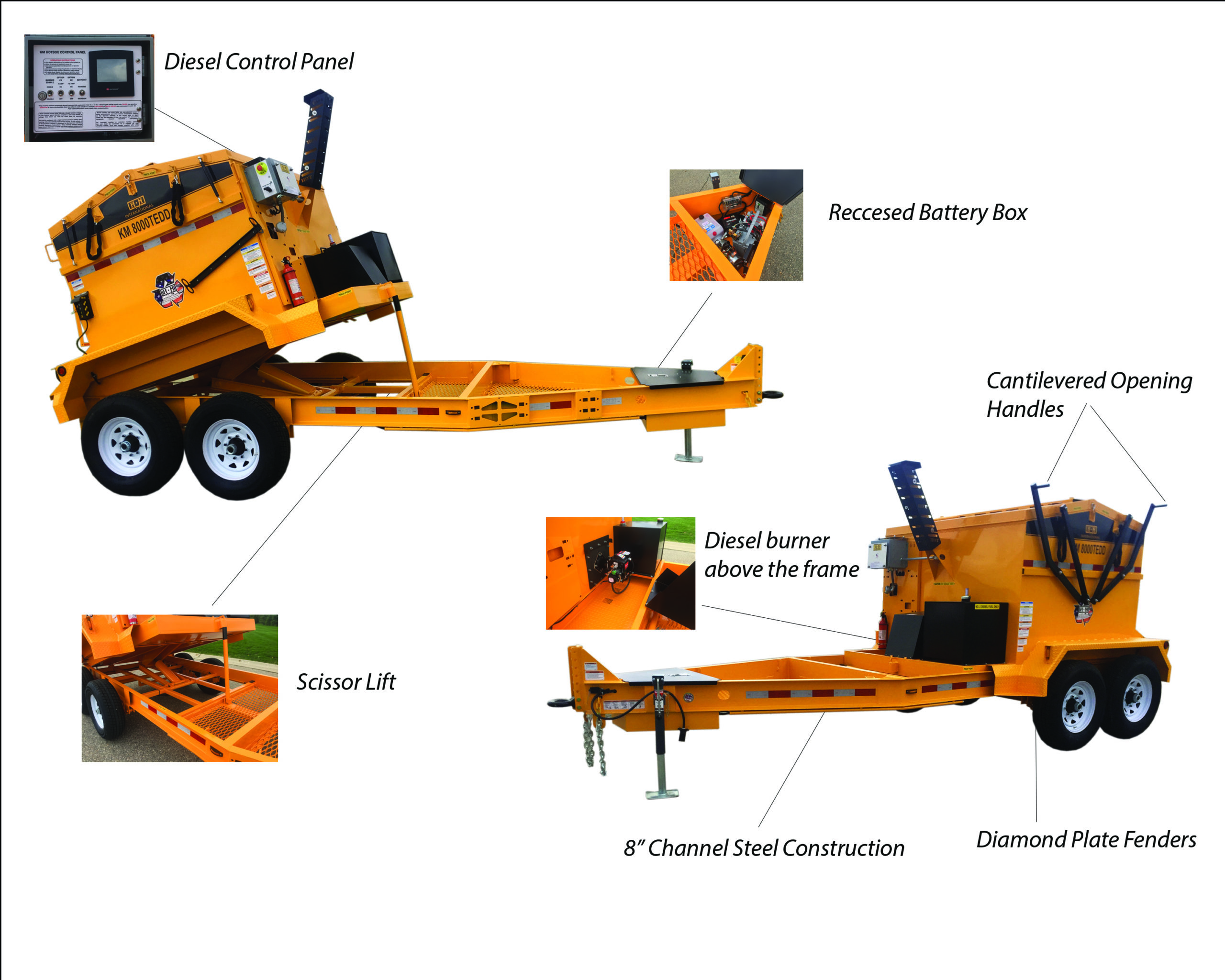

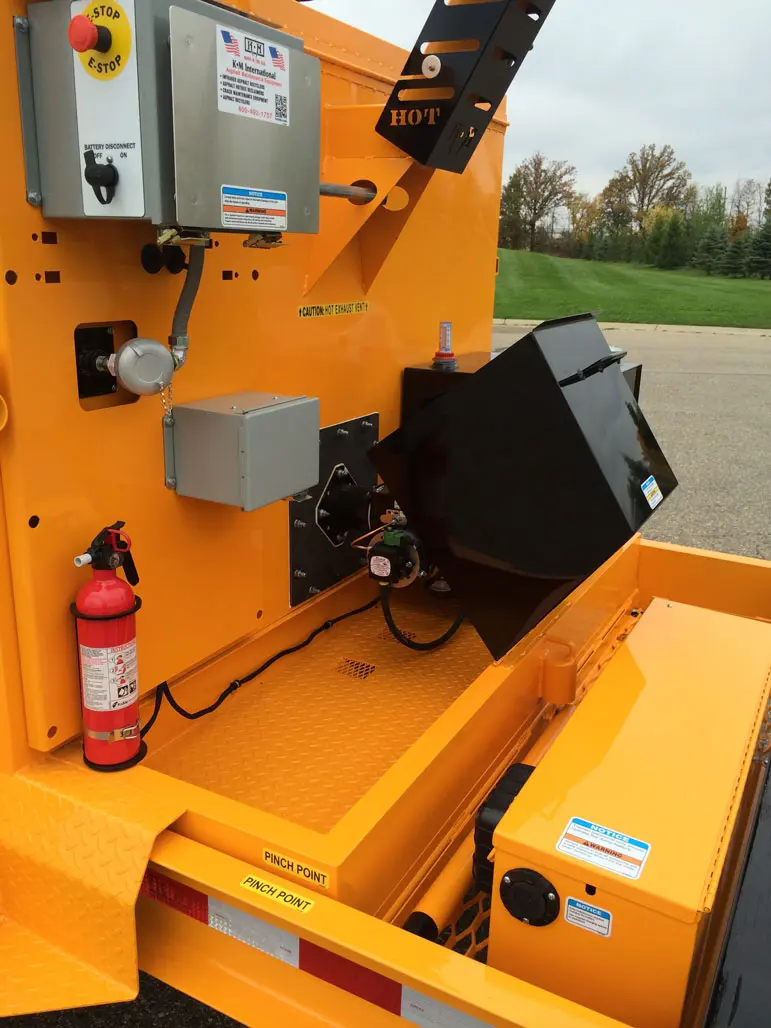

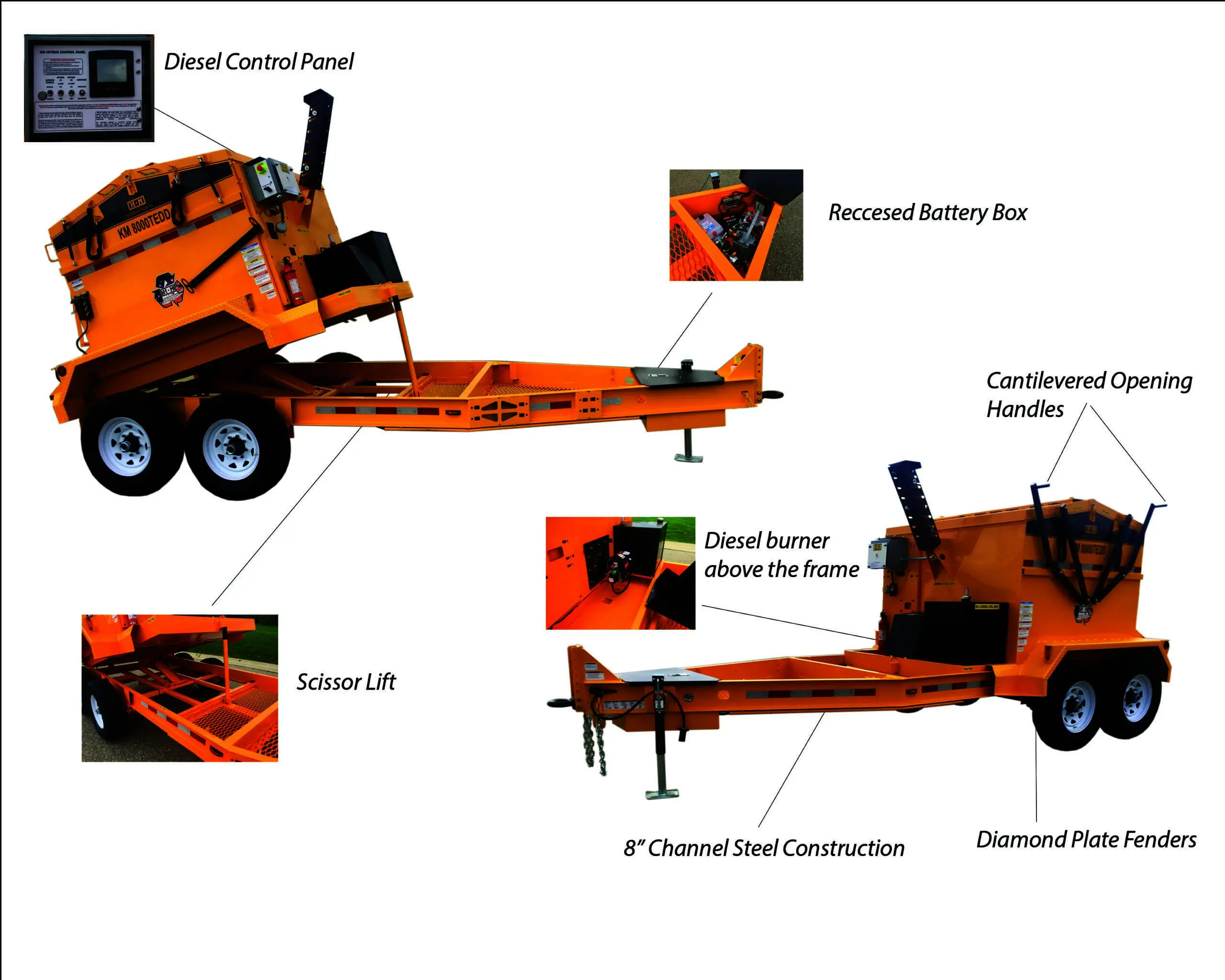

Low Maintenance: Burner and key components mounted above frame and in steel enclosure
Ease of Use: Front to back loading doors with cantilevered handles
Diesel or Propane Fired

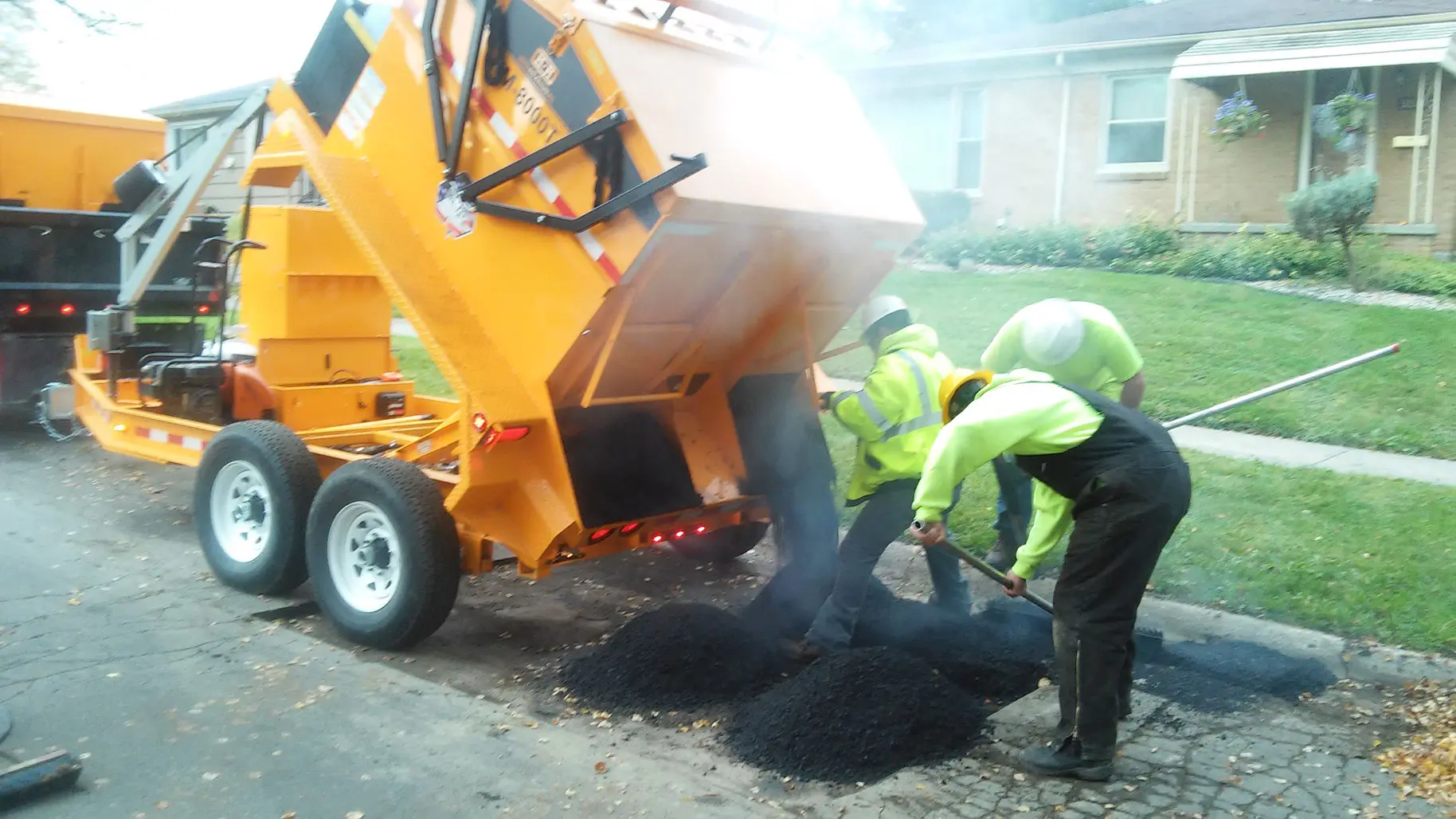

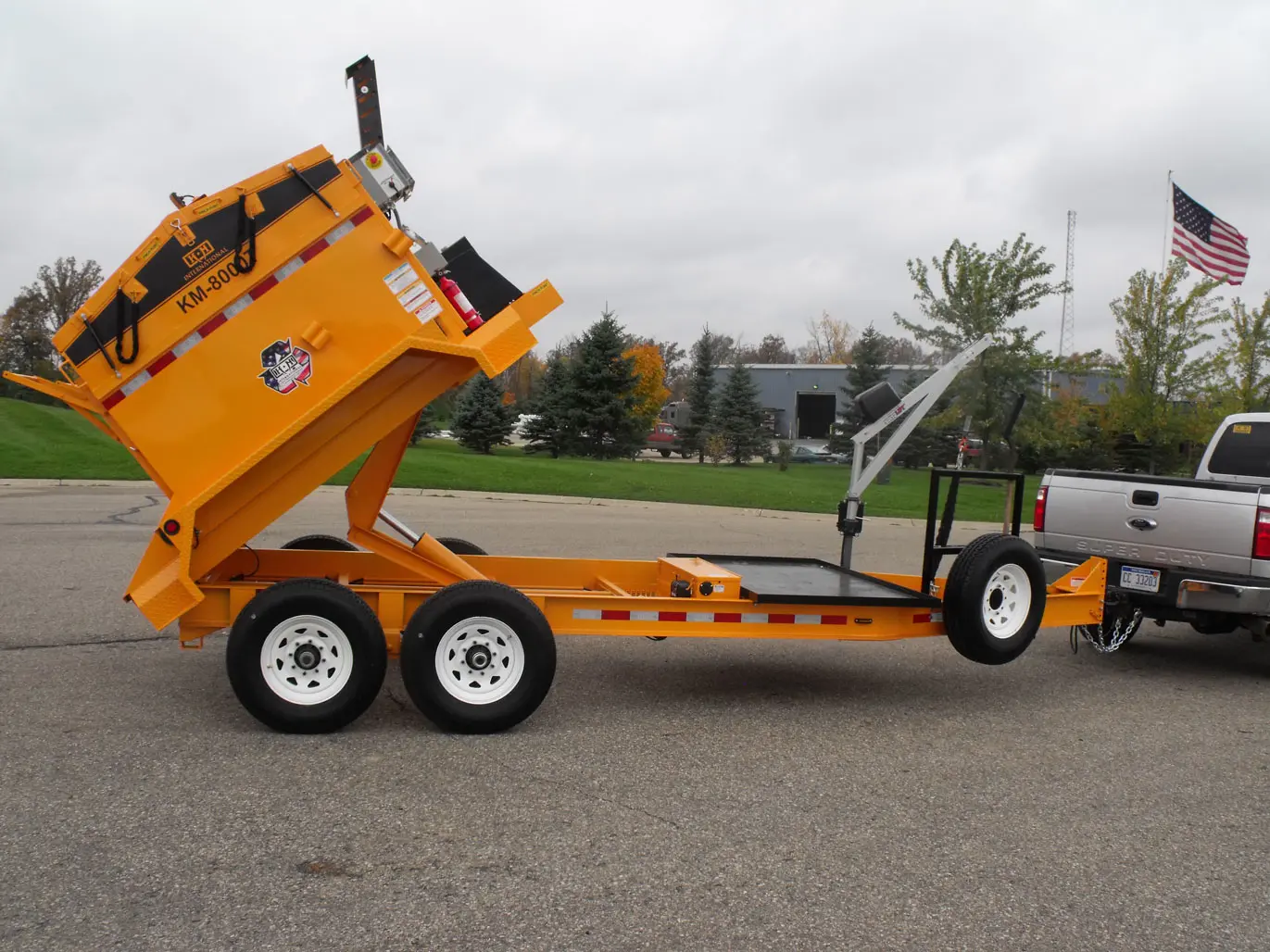

52˚ Dump feature (additional option)
Dimension (L x W x H) – 18’ x 95.5” x 94” (Dimensions May Vary Based On Options)
Weight – 4,325 Lbs.
Capacity – 8,000 Lbs.
Heating element – Propane: 58,000 BTU or Diesel: 105,000 BTU

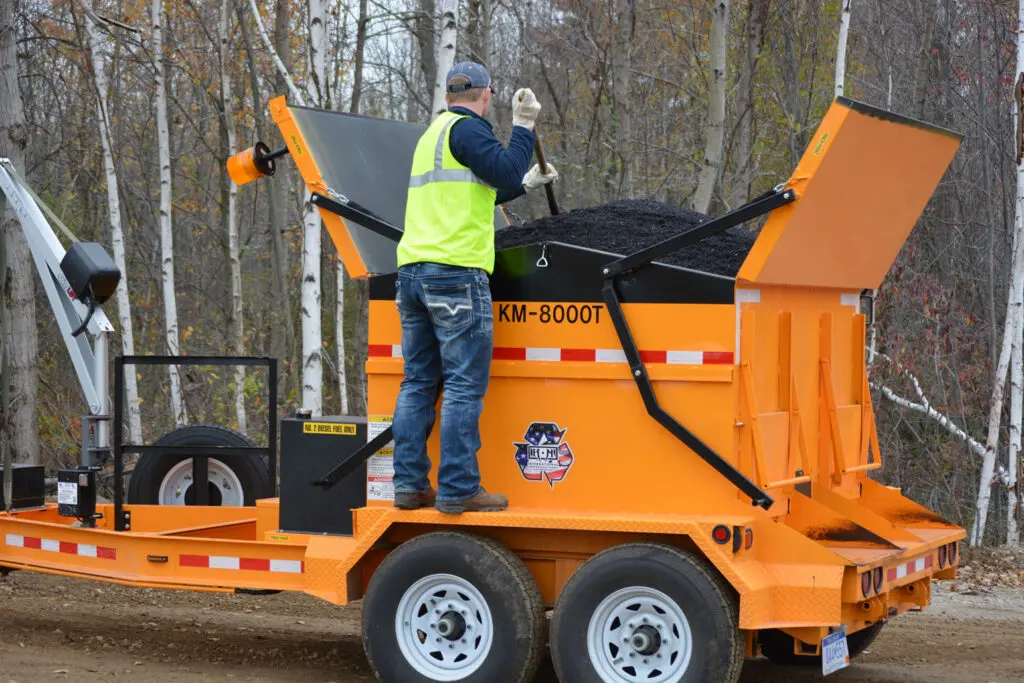

Filling Door – Dual insulated filling door, Dual cantilever handle

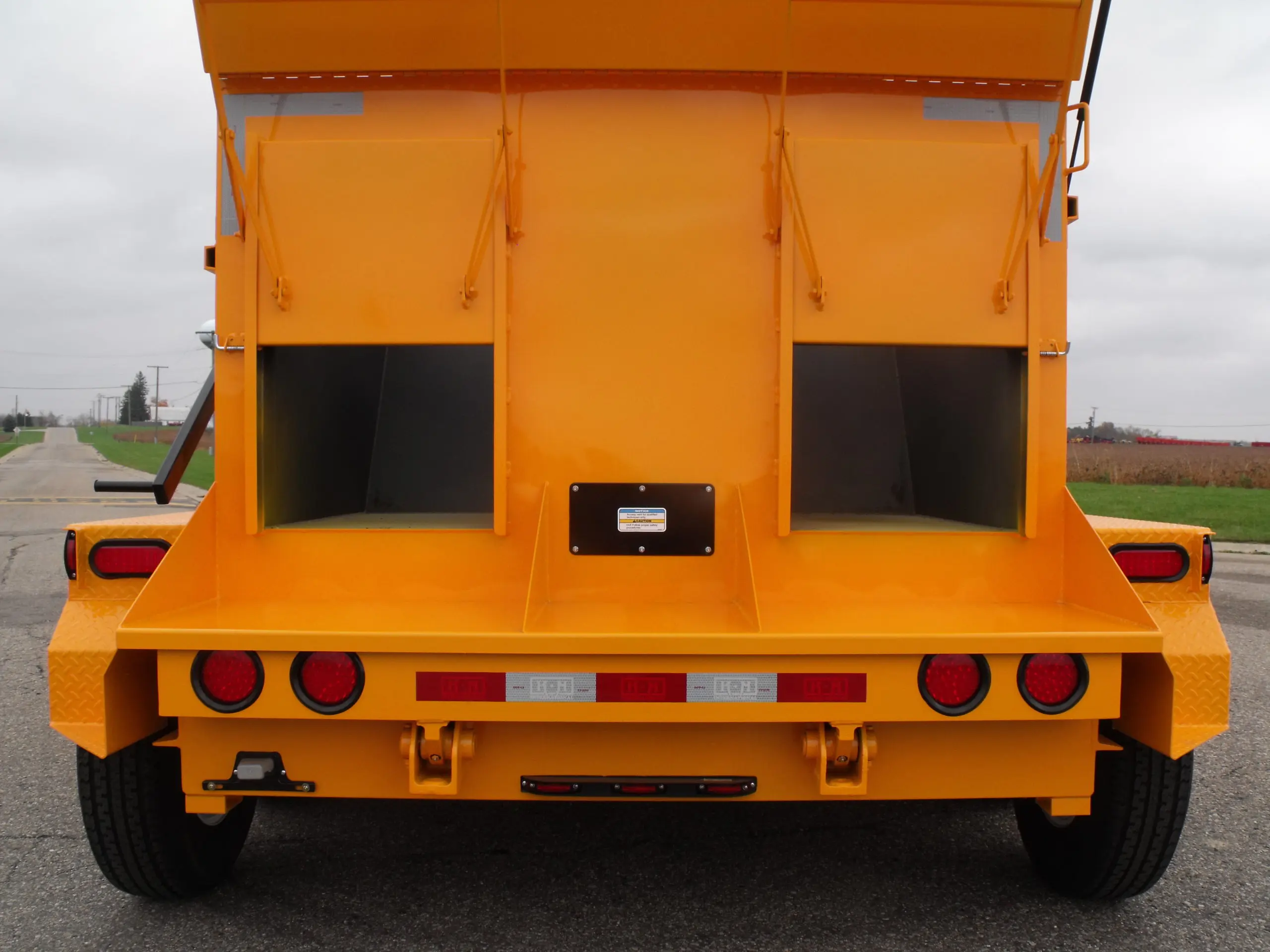

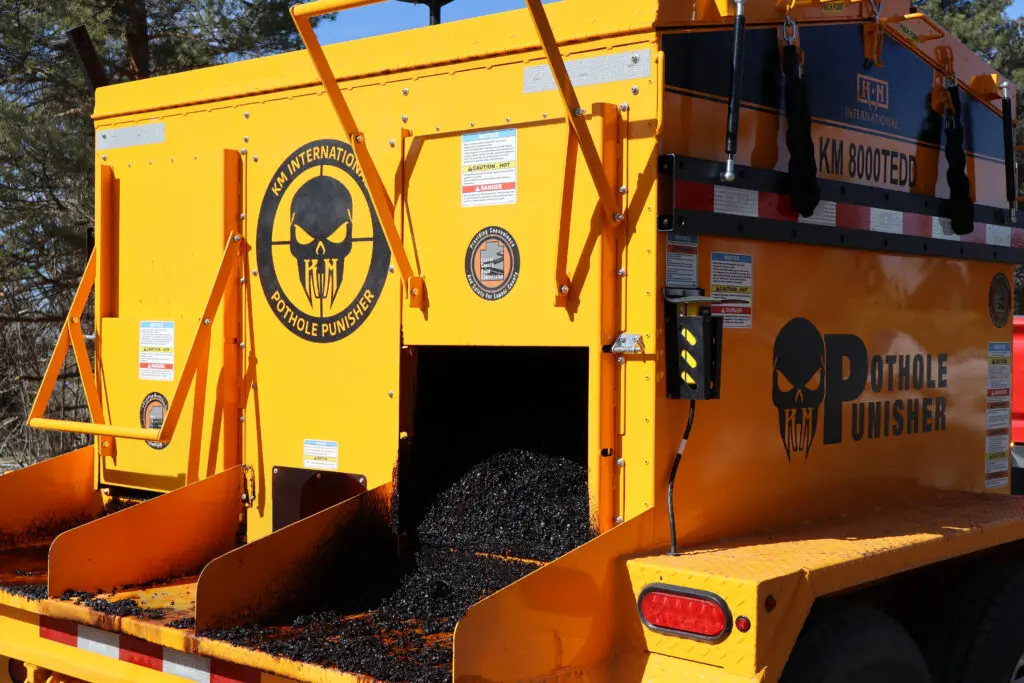

Shovel Door – Dual insulated shovel door
Insulation – 2”-3” of high efficiency insulation

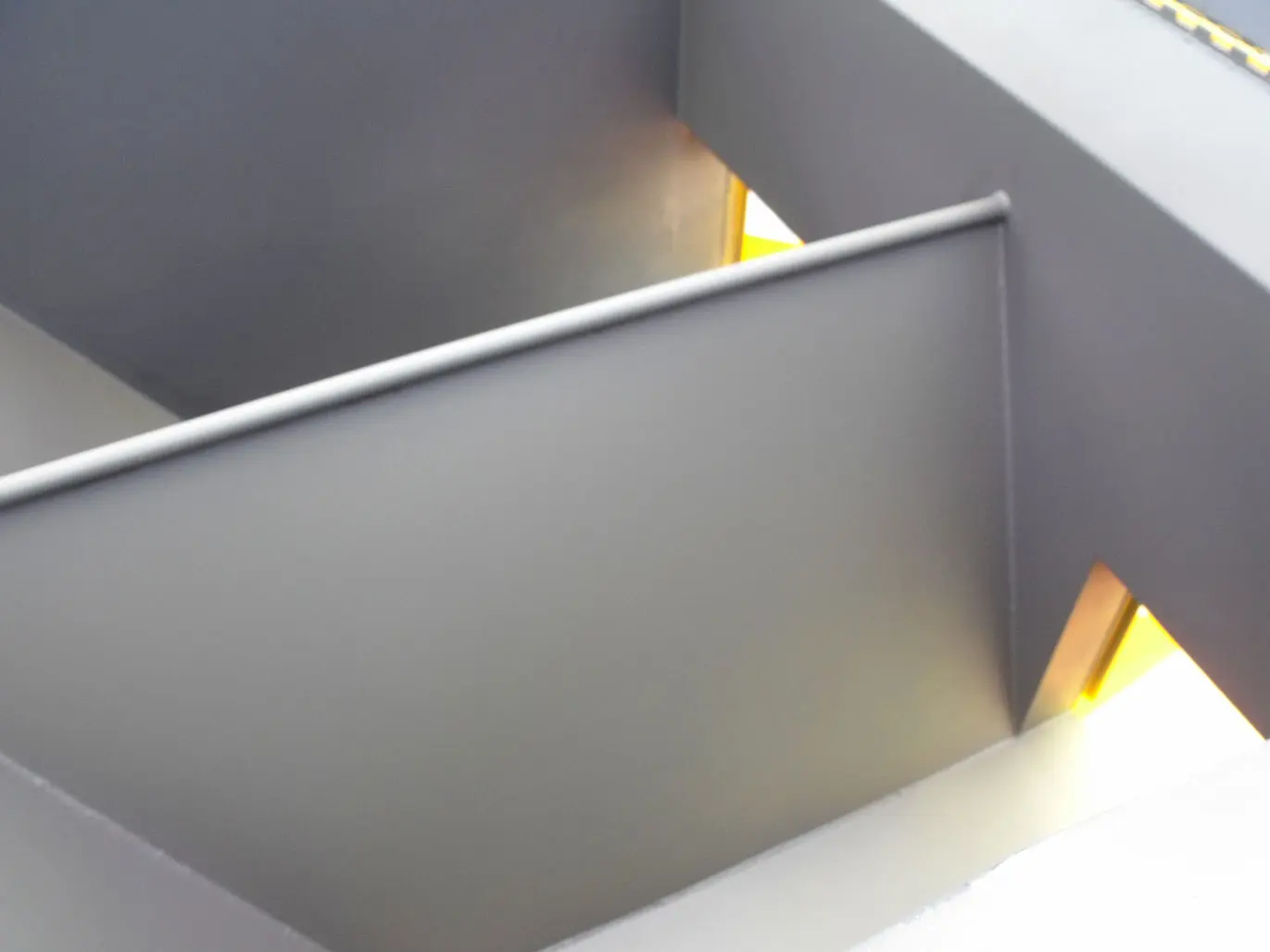

Construction – All welded: 16G Skin, 12G asphalt compartment
Trailer Capacity – 14,000 Lbs. GVWR
Axle – Dual 7,000 Lb. , standard electric brakes
Tire and Wheels – 3,520 LR E (each)
Warranty – 2-year warranty on parts and workmanship
5-year warranty of trailer frame structure
*Specifications subject to change without notice
For Pricing Request
Contact us at 800-492-1757 or click here for our Online Inquiry Form or contact an Authorized KM International distributor near you.
Pricing Options
KM 8000T Monthly payments as low as $529*
Apply For Financing
Apply for financing through Crest Capital
Apply for financing through Stearns Bank
Government Contract Purchasing Contracts
Sourcewell
National Cooperative Purchasing Alliance (NCPA)
*Payments are based on 60-month lease terms from third party finance companies. KM International or its subsidiaries are not liable for financing obtained through third party finance companies.
Solvent Tank: 7 Gallon Solvent Tank Mounted on Trailer
Tool Rack: 6 Position Tool Rack

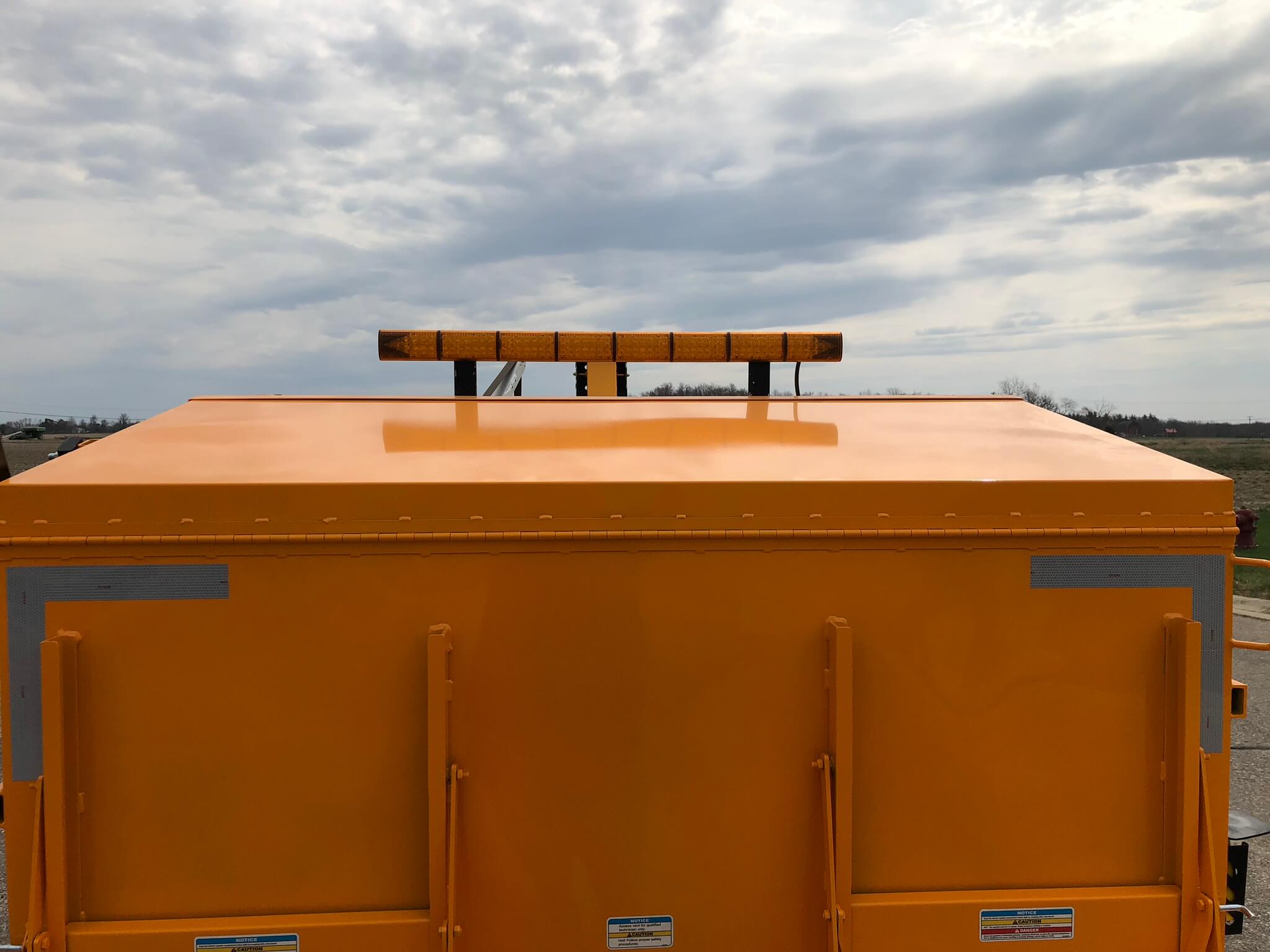

Light Bar: Directional Arrow Board Mounted on the Lid of Unit

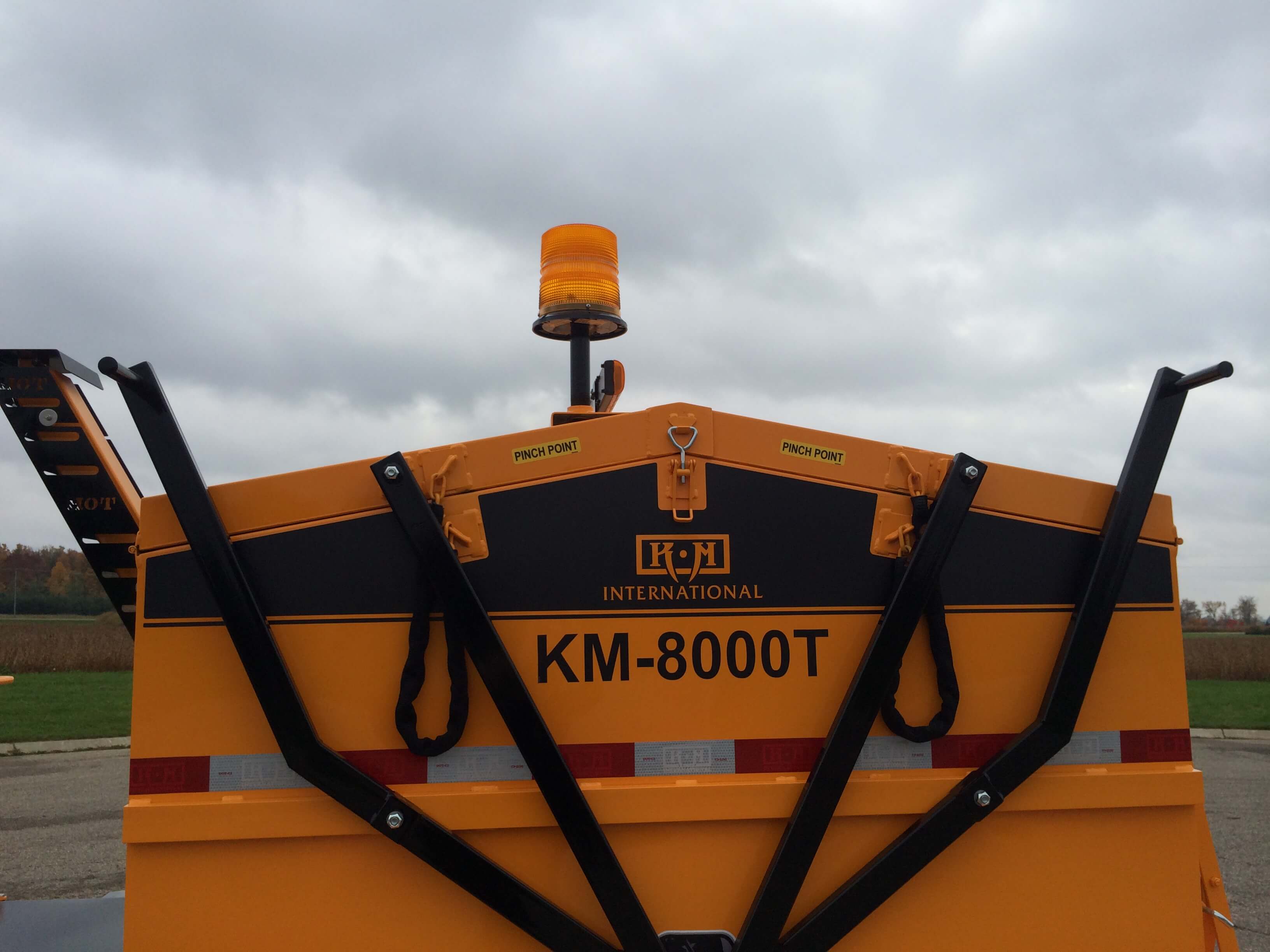

Strobe Light: Amber Strobe Light Mounted and Switched

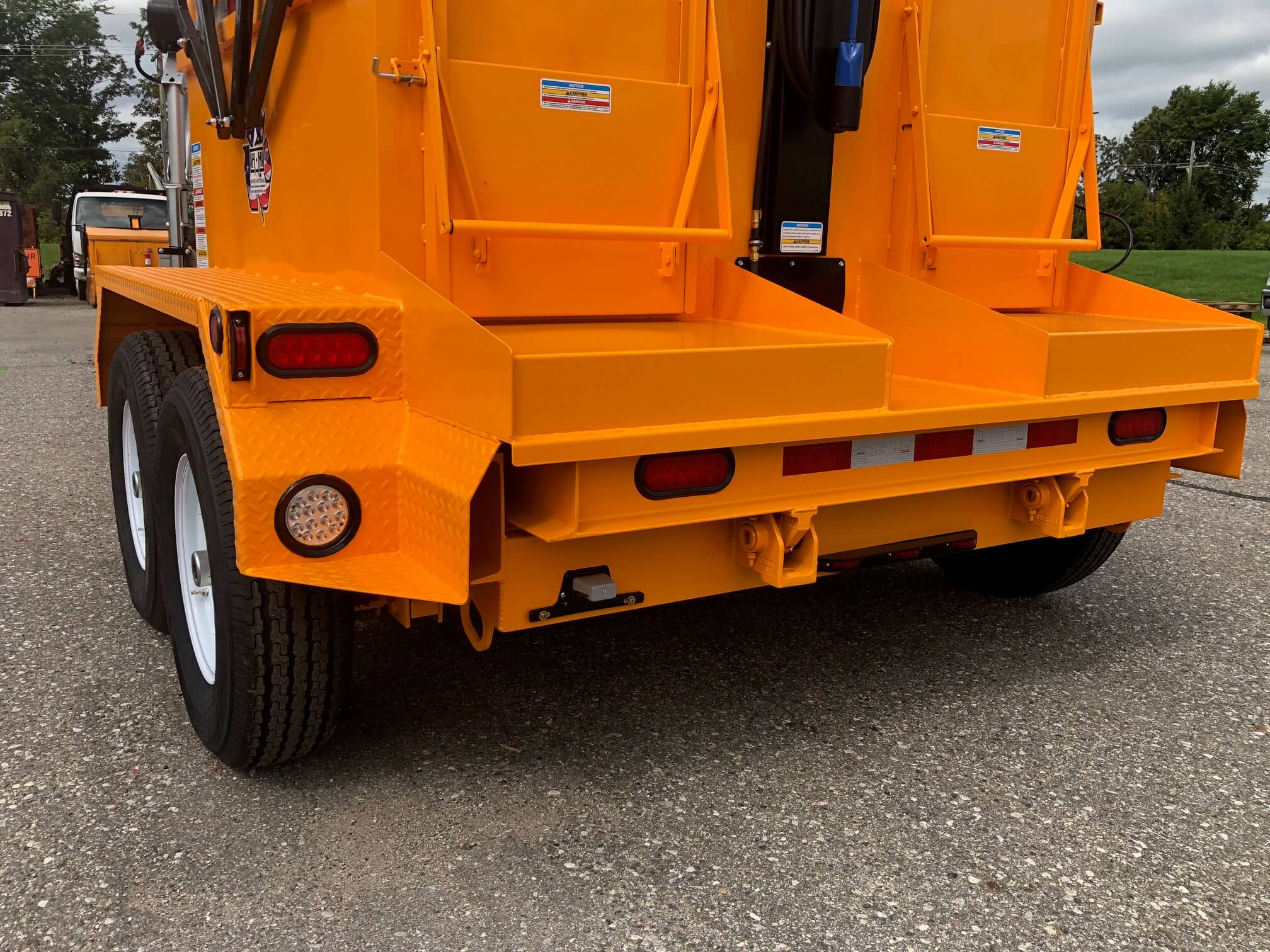

Fender Mounted Strobe Lights: 4″ Strobe Lights Mounted in Rear Fenders
Work Lights: 2 LED Work Lights Mounted to Top of Unit

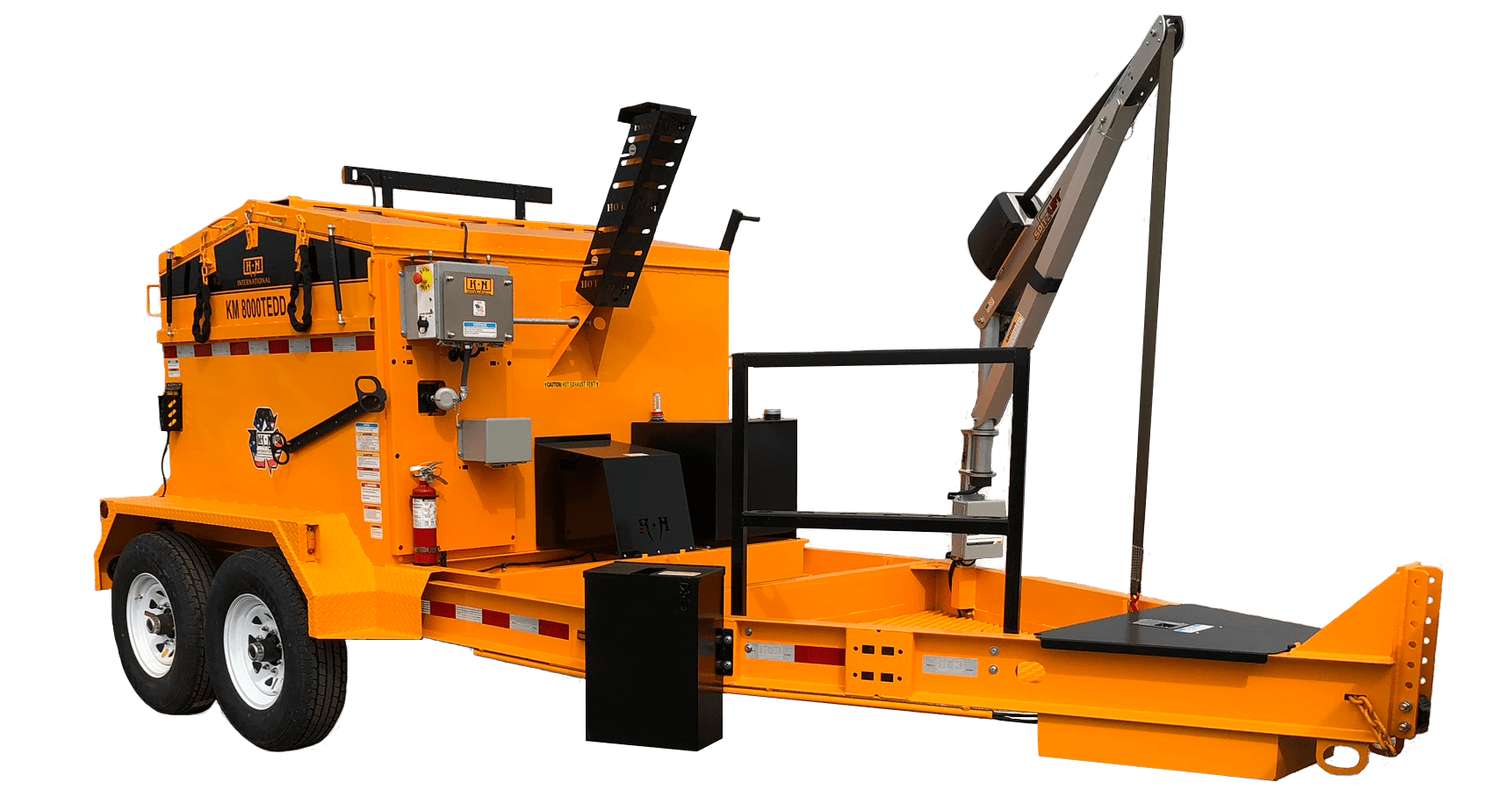

Loading Hoist: 12V Powered or Manual Available
Utility Hand Torch with Hose Reel: 50,000 BTU Hand Torch with 25Ft. Hose Reel
30 Gallon Tack Tank: 30 Gallon Heated Tack Tank with a 15,000 BTU

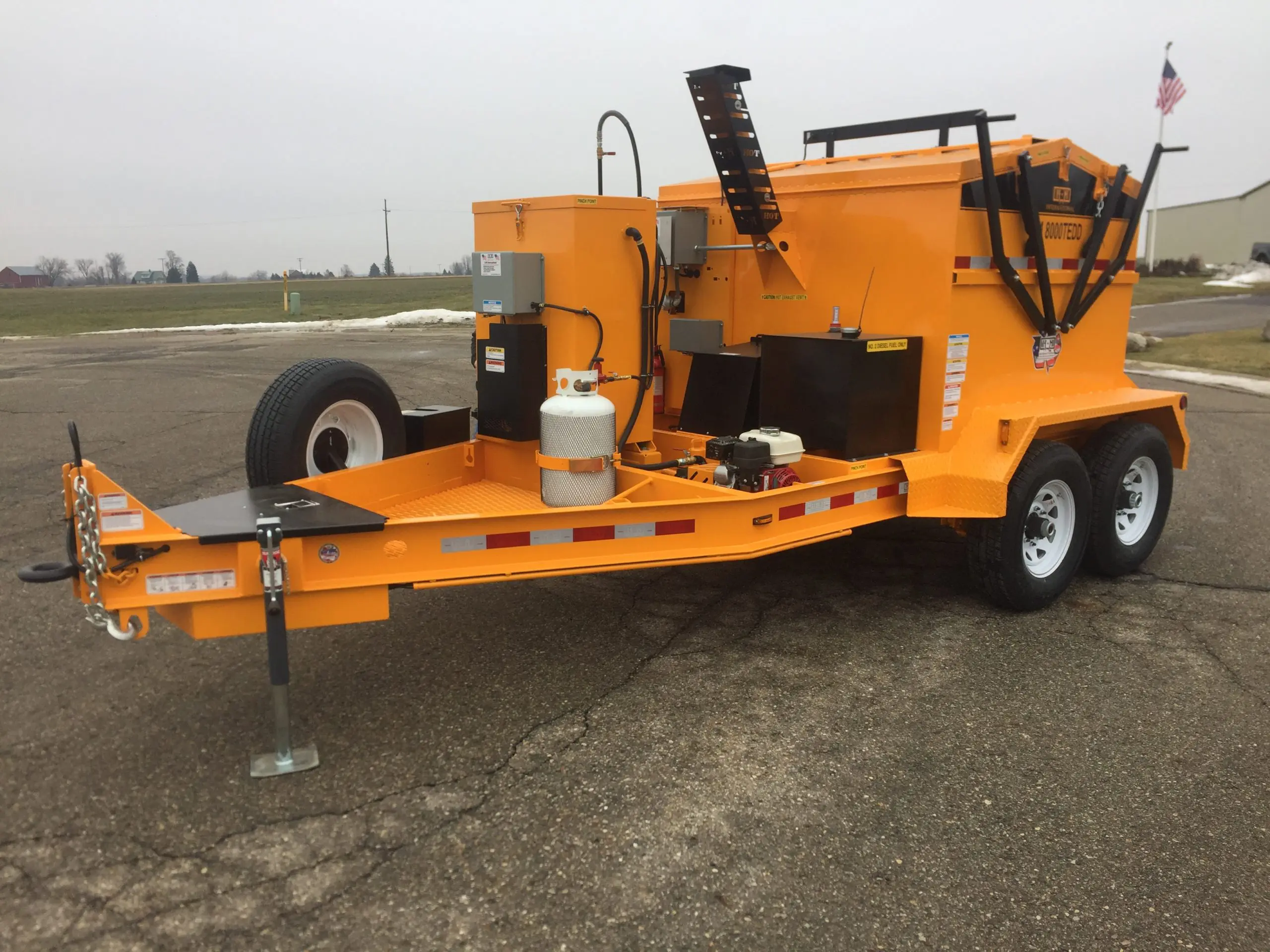

Spray Tack Unit: Spray Wand, 3/4 Rope Pump, and 5.5 HP Honda Engine (Requires Tack Tank Option)
Extended Trailer: Adds 2 Ft. to overall length (20Ft. Total) to Accommodate Additional Options
24 Hours Timer: 110V Powered. (Only applicable to Propane Fired Units, Standard on all Diesel Models)
Low Temp Thermostat: Allows Heating of Cold patch Material (Only applicable to Propane Fired Units, Standard on all Diesel Models)
