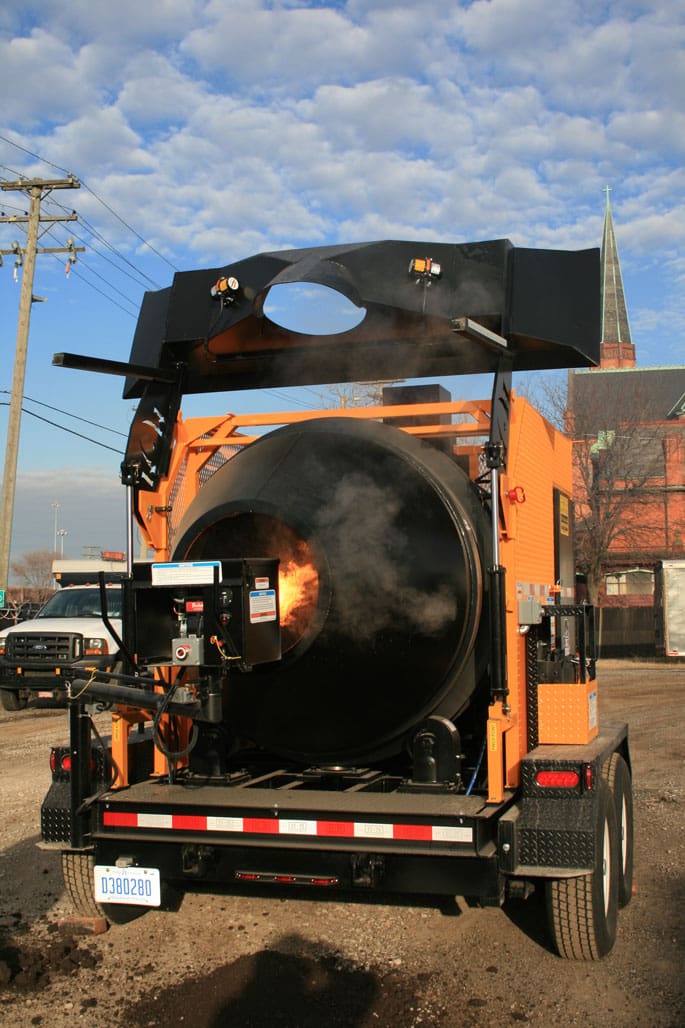

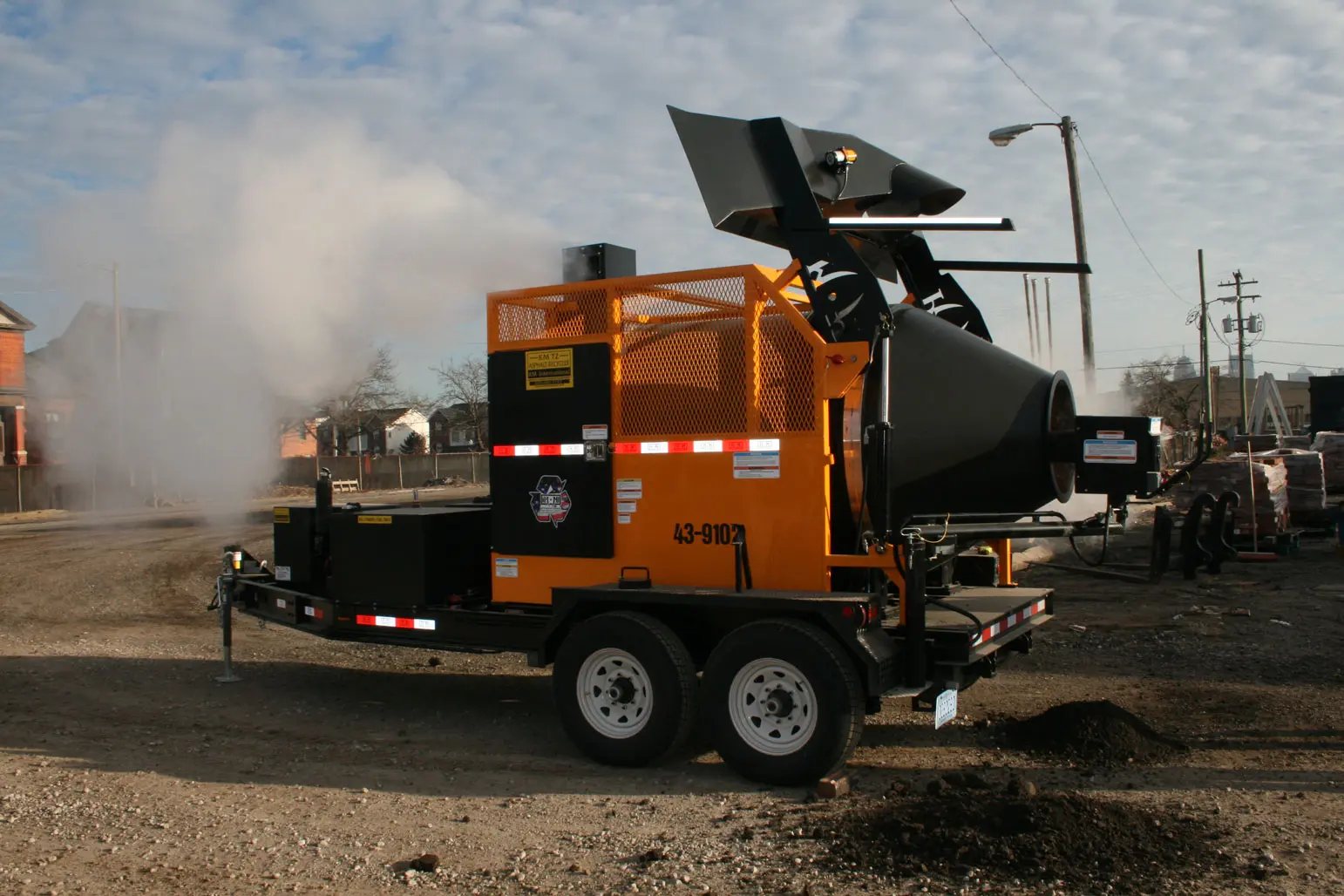

KM T-2 Asphalt Recycling Machine
The KM T-2 is an asphalt recycling machine capable of producing 4 tons of hotmix asphalt in an hour. The KM T-2 asphalt recycler trailer will recycle asphalt millings, chunks, and other RAP material into plant-grade asphalt. The KM T-2 allows contractors the ability to perform year-round repairs with quality hotmix asphalt material.
Asphalt Reclaiming vs. Recycling: What You Need to Know
We at KM International believe in equipping our customers with the most suitable equipment to help them in achieving their goal. KM International would like to take this time to clarify the difference between asphalt RECYLING and RECLAIMING, and more importantly the equipment necessary to achieve these two processes.
The process of reheating bulk stored, un-compacted virgin hot mix asphalt back to its original temperature of 350˚F and into a malleable state. This reheating process takes place by means of a heat source in static asphalt hotbox reclaimer without adding any additional additives.
As stated above the reclaiming process can be achieved in an asphalt hotbox reclaimer.
Asphalt recycling is the process of taking asphalt millings, chunks, or pulverized and recycling that material backs to its original consistency and temperature of 350˚F. To proper recycle you need not only a heating source but a rotating drum to break down, dry out, and evenly encapsulate reintroduced asphalt cement.
The process of asphalt recycling can be achieved in an asphalt recycling machine such as the KM T-2.
Think about it this way..
Compare asphalt recycling and reclaiming to baking a cake.
When you are making a cake you put all the ingredients into a bowl and then use mixer to mix the ingredients together then put it in the oven and 30 minutes later you have a cake, but what if you didn’t mix the ingredients in the bowl and just dumped everything in then put it in the oven, you would come out with a big mess.
Asphalt recycling is the same thing, think of the millings as the cake batter and the asphalt cement as the eggs, if you don’t have a way to mix the ingredients you are not going to come out with a quality material.
So when someone’s says you can RECYCLE in a static hotbox, ask how can a static hotbox mix the new asphalt cement evenly, how it can completely dry out the millings, do your proper homework.
The reason a hotbox reclaimer will reheat virgin material is because virgin material still encapsulates the asphalt cement added at the plant so it has not lost any of it chemical properties. Reclaiming is the just the process of reheating.
The KM T-2 Asphalt Recycling Machine Features:
- Cost Savings: Asphalt for $15-25 a ton compared to $60-75 at the plant or $110 + for cold patch
- Efficiency: Produces a load of 2,600Lbs. every 15-20 minutes or Approx. 4 tons/hr.
- Reliability: Recycle millings into plant quality or better mix year round. NO DIRECT FLAME IMPINGEMENT ON MATERIAL
- Green Process: No longer do you have to throw out old chunks or millings
- Versatility: Ability to add as much or as little asphalt cement as you want to completely customize you mix design
- Profitability: If you are an asphalt producer you now have the ability to keep key customers supplied with HMA year round
- Time Saving: Skip the long lines and hassle at the asphalt plant by using the T-2 to produce HMA at your shop or on the job site
Dimensions (l x W x H) - 23’1” x 8.3’ x 9'
Weight - 8,600 Lbs.
Top Opening (L x W)- 26” x 94”
Axels - Dual 7,000 lbs. axels, w/ electric brakes on all wheels
Construction - 8” Channel steel with 2 ½” x ¼” square tubing support members

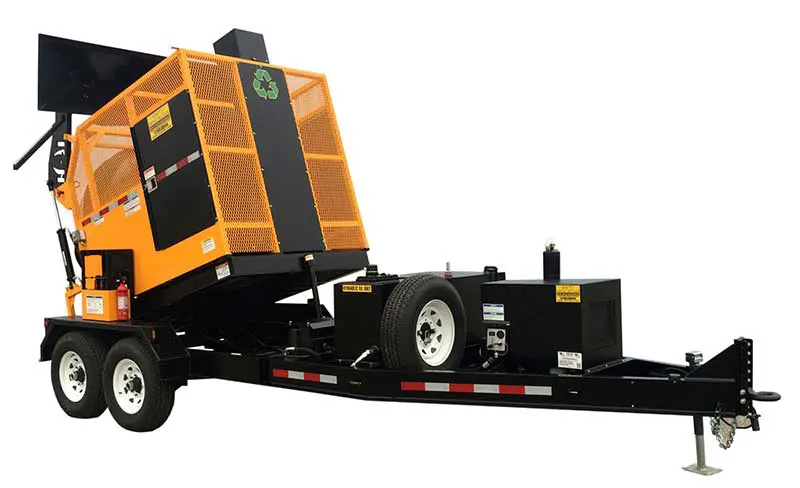

Actuators - (2) 2” x 16” hydraulic cylinders
Asphalt Heating Drum
Construction - 3/16” steel: 450 Brinell hardened
Agitation Paddles - (7) 3/16”: 450 Brinell Hardened
Rotation - Hydraulically controlled, approx. 9 RPM
Reservoir - 30 Gallon
Pump - 9.5 gal./minute
Motor - 38 cubic inch
Fuel - No. 1 or 2 Diesel, B-5 bio-diesel, or kerosene
Fuel Storage -80-gallon fuel tank with filter and manual shut off
Burner type - Beckett Model SDC
BTU Output - 700,000
Engine - 21 BHP Kubota
Loading - Milled asphalt or broken chunk pieces up to 12”

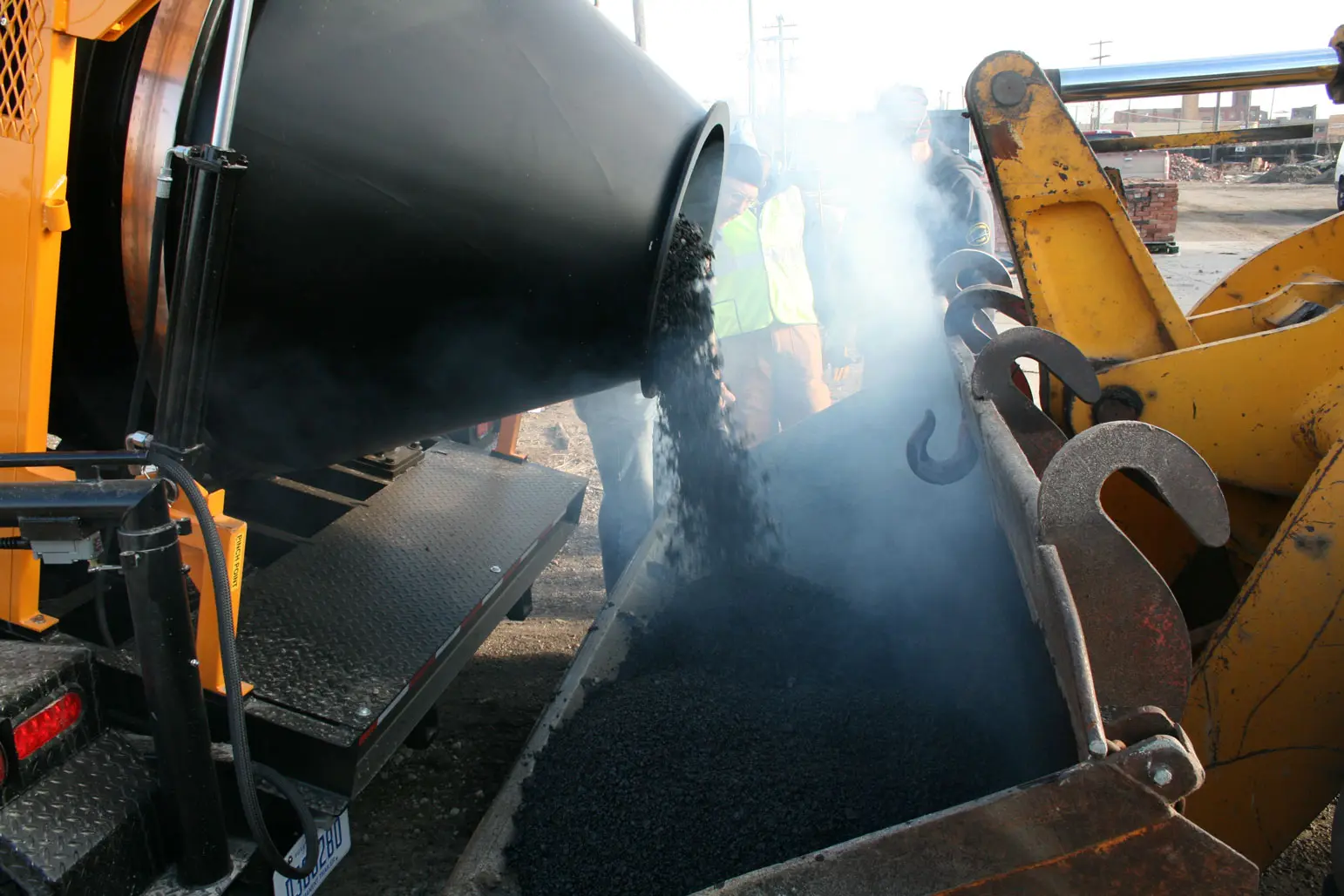

Unloading - Unload directly into application area or into front end loader bucket
FOR PRICING REQUEST
APPLY FOR FINANCING
*Payments are based on 60-month lease terms from third party finance companies. KM International or its subsidiaries are not liable for financing obtained through third party finance companies.
Tool Rack: 4 Position Tool Rack
Strobe Light: Amber Strobe Light Mounted to Top of Unit
Work Lights: 2 LED Work Lights Mounted to Top of Unit
Mounted Spare Tire
