KM 4000S- 2 Ton Asphalt Hotbox Reclaimer

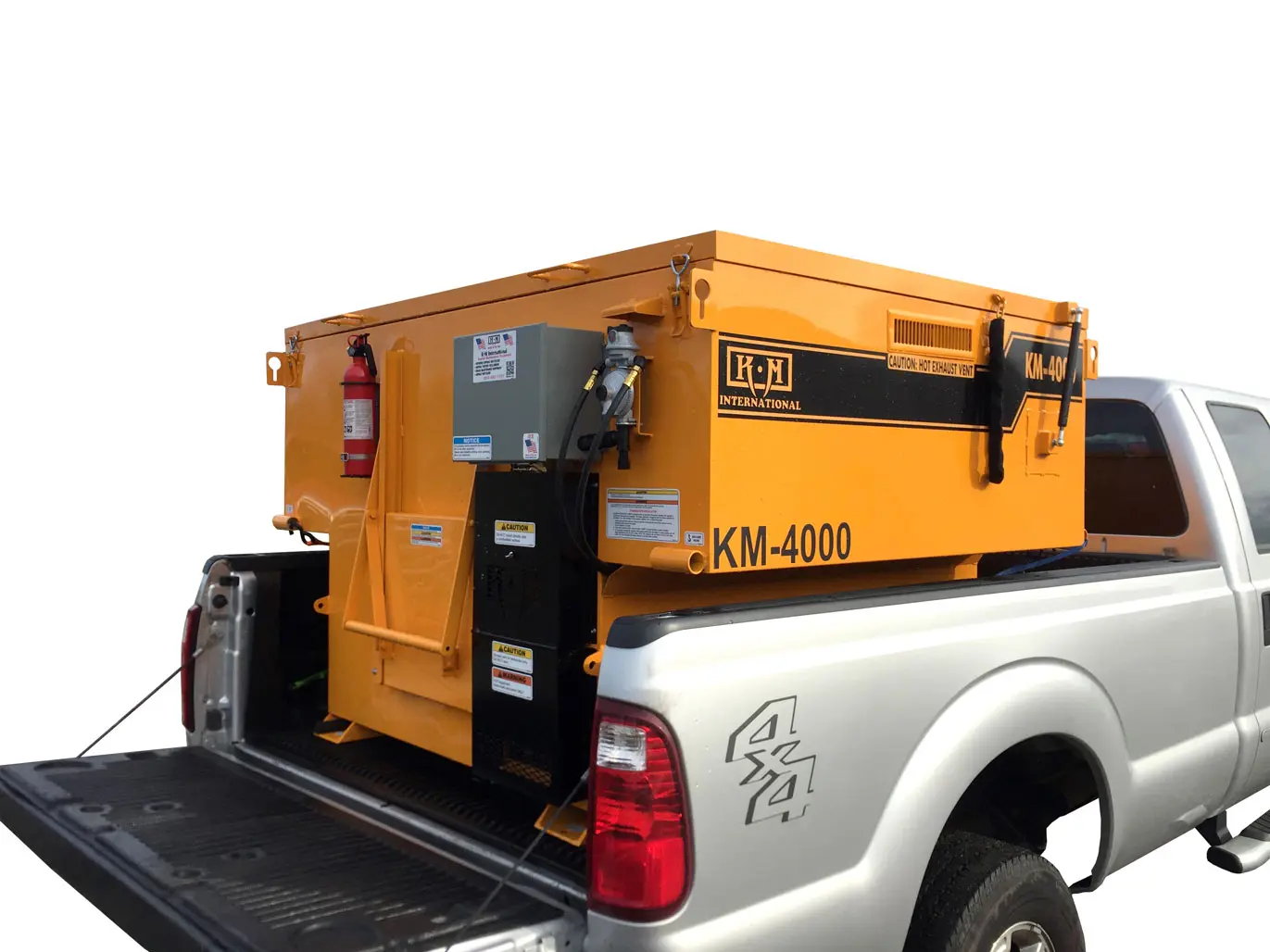

The KM 4000S is a 2-ton, skid-mounted asphalt hotbox reclaimer capable of maintaining asphalt temperatures for up to 3 days. It also will reclaim/reheat excess or leftover asphalt after it has cooled down. The KM 4000S is a skid-mounted unit that can be mounted in the bed of a 3/4-ton or larger truck.

Slider Nav Image
Slider Nav Image
Slider Nav Image
Slider Nav Image
Slider Nav Image
Slider Nav Image
Slider Nav Image

Request A Quote Download Specifications PDF Download Brochure PDF



  • Heat Retention: Triple wall constructed with high efficiency insulation

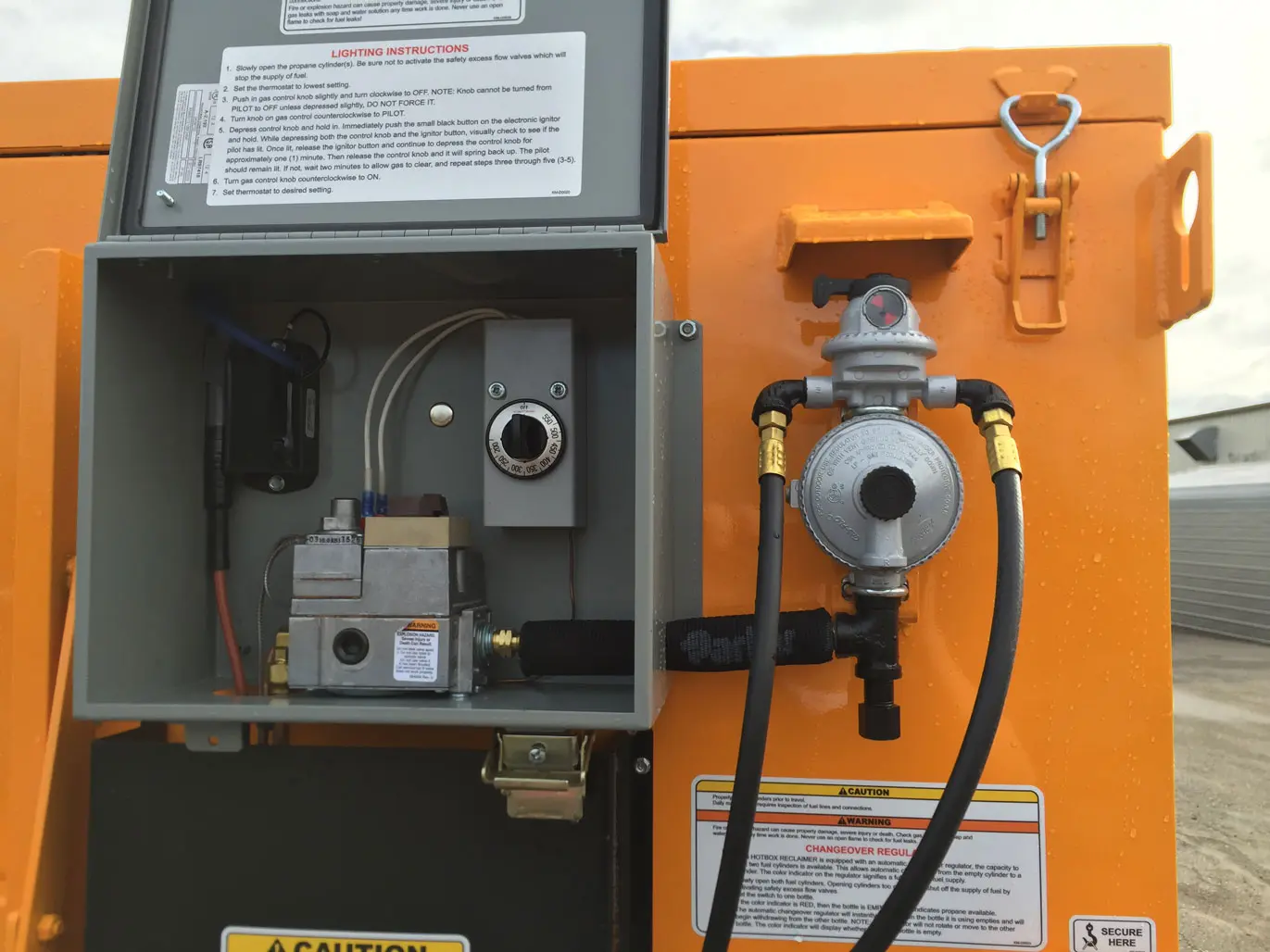

  • Temperature Control: Thermostatically controlled for higher fuel efficiency
  • Cost Savings: Maintain asphalt temperature for a period of 48 Hours or reclaim bulk stored virgin HMA
  • Diesel or Propane Fired (2 30Lb. Propane Cylinders included with Propane units)


Dimensions (L x W x H): Propane Model 62” x 77” x 46.5”
Diesel Model: 89" x 77" x 64"
Weight - Propane: 820 Lbs. Diesel: 1350 Lbs.
Capacity - 4,000 Lbs. (2 Tons)
Heating Element - Propane: 60,000 BTU or Diesel: 105,000 BTU
Filling Door - Single insulated lid, Single cantilever handle
Shoveling Port - Single shovel port with inside walls tapered towards shovel port
Insulation - 2”-3” of high efficiency fiberglass insulation
Construction - All welded steel: 16G Skin, 20G Top and 14 G Asphalt Compartment
*Specifications subject to change without notice



Contact us at 800-492-1757 or click here for our Online Inquiry Form
or contact an Authorized KM International distributor near you.


KM 4000s Monthly payments as low as $189*


*Payments are based on 60-month lease terms from third party finance companies. KM International or its subsidiaries are not liable for financing obtained through third party finance companies.


Bottle Rack: Bottle Rack to Accommodate Two 30LB. Propane Cylinders
Extended Propane Hoses: 8′ Hoses Replace Standard 3′ Hoses
